Wharfedale EVO-X18B 18″ Passive Subwoofer
R10,399
Availability: In stock

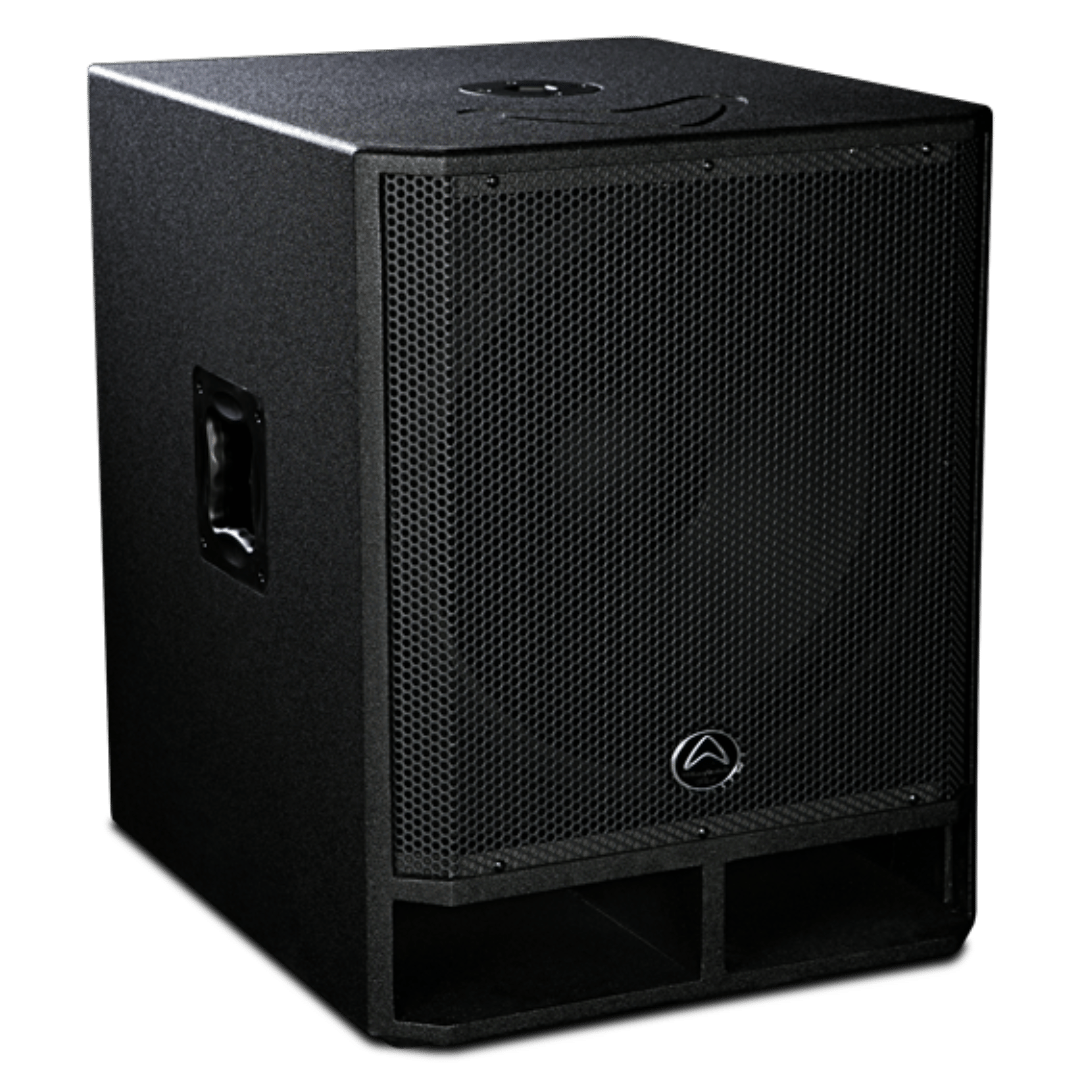

EVO-X18B is an 18″ passive subwoofer from our EVO-X Series — designed to deliver deep, powerful low-frequency reinforcement for live sound systems with authority and precision.
At its core is a high-excursion 18″ LF driver with a robust 3.0″ voice coil, engineered to produce tight, controlled bass response even at high sound pressure levels. With 600 W AES (2400 W peak) power handling and delivering up to 134 dB max SPL @ 1 m, EVO-X18B adds serious low-end impact to full-range EVO-X systems or other passive PA setups.
Constructed from durable MDF and finished in rugged Tough-Tone paint, this subwoofer is built to withstand demanding touring and installation environments. The iconic Wharfedale Pro boomerang engraving enhances its visual identity, while 4 pole loudspeaker connextors and 1/4″ jack connectors ensure easy integration with a range of amplification setups.
EVO-X18B — powerful, reliable low-frequency performance for stages, venues, and mobile PA systems.
| Specification | Value |
|---|---|
| Active or Passive | Passive |
| System Type | Subwoofer |
| Configuration | Bass-reflex |
| System Continuous Power | 600 W |
| System Programme Power | 1200 W |
| System Peak Power | 2400 W |
| Max SPL @ 1m | 134 dB (Half Space) |
| Freq Response (+/-3 dB) | 35 Hz – 250 Hz |
| Freq Range (-10 dB) | 30 Hz – 250 Hz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 18″ |
| LF Voice Coil Size | 3″ |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 600 W |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector / 2 x 1/4″ Jacks |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Rhino Paint |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | 35 mm |
| Brackets Included | No |
| Rigging | No |
| Sensitivity 2.83 V / 1 M | 100 dB |
| System Rated Impedance | 4 Ω |
| Crossover Frequency | 150 Hz |
| Recommended HPF = BW 18 dB/OCT. | 30 Hz |
| Transformer (T) | No |
| Included Accessory | User Manual |
| Unpacked – Height (mm) | 650 |
| Unpacked – Width Front (mm) | 522 |
| Unpacked – Width Rear (mm) | 522 |
| Unpacked – Depth (mm) | 610 |
| Packed – Height (mm) | 715 |
| Packed – Width Front (mm) | 656 |
| Packed – Width Rear (mm) | 656 |
| Packed – Depth (mm) | 568 |
| Weight – Nett (kg) | 40.1 |
| Weight – Gross (kg) | 45.2 |
