IMG Stageline MPR-1
Original price was: R1,399.R1,160Current price is: R1,160.
Check Stock Availability
Available On Request Only

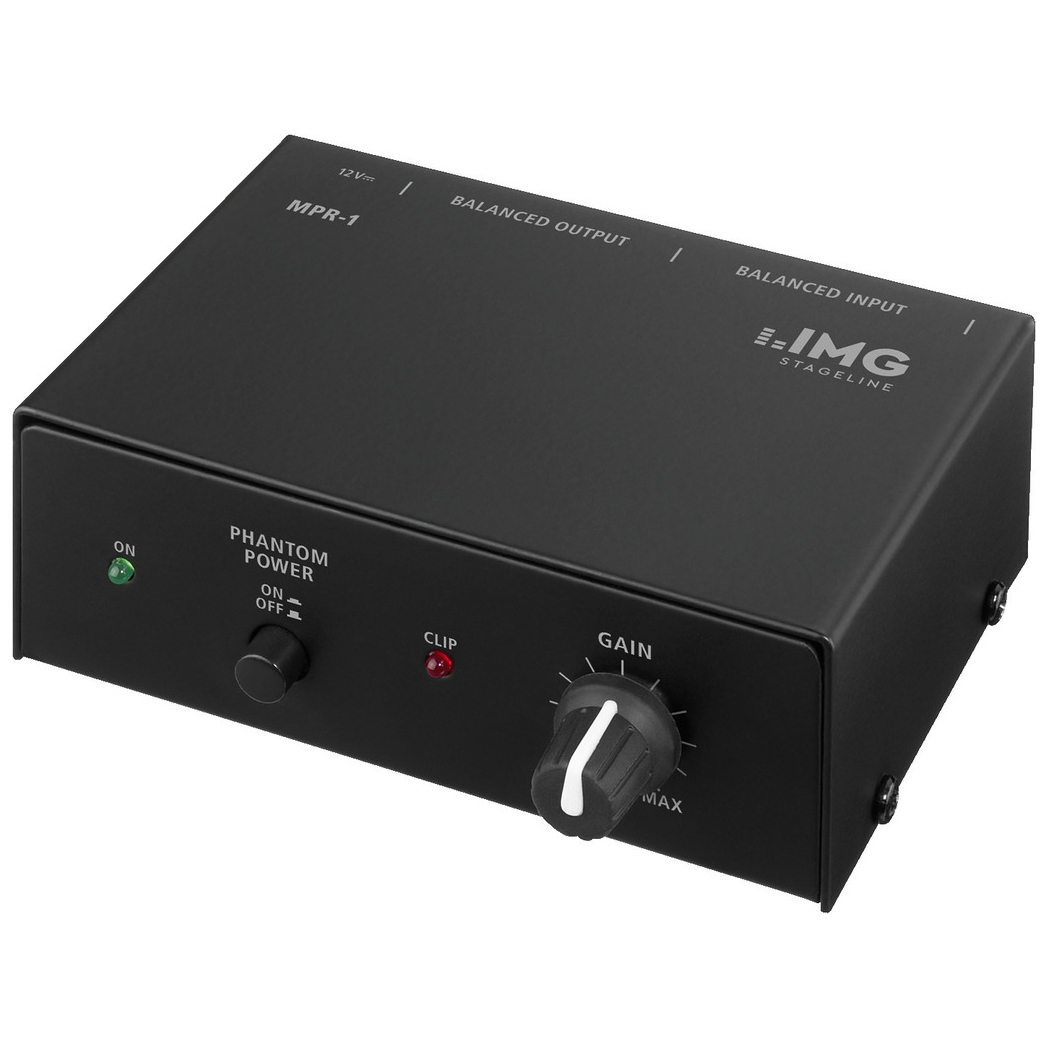

IMG Stageline MPR-1
1-channel microphone preamplifier,
with switchable phantom power.
- 1 microphone input, XLR, bal. or 6.3 mm jack, bal.
- Gain control: up to 50 dB max.
- Clip LED
- 30 V phantom power, can be activated as required
- https://www.oosthavens.co.za/product-category/pro-audio/amplifiers-processors/amplifiers/
TECHNICAL SPECIFICATIONS MPR-1
| MPR-1 | |
|---|---|
| Description | microphone preamplifier |
| Frequency range | 10-30,000 Hz |
| Input signal | 3.5 mV (XLR, bal.)16 mV (jack, bal.) |
| Input impedance | 10 kΩ |
| Output signal | 1 V |
| Gain | 50 dB (with bal. connection)44 dB (with unbal. connection) |
| S/N ratio | 58 dB |
| THD | 0.1% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | via encl.plug-in power supply |
| Dimensions | 113 x 92 x 40 mm |
| Weight | 345 g |
| Inputs | 1 x XLR,1 x 6.3 mm jack |
| Outputs | 1 x XLR,1 x 6.3 mm jack |
