Wharfedale EVO-X15 15″ Passive. Simply classic PA
R7,149
Availability: In stock

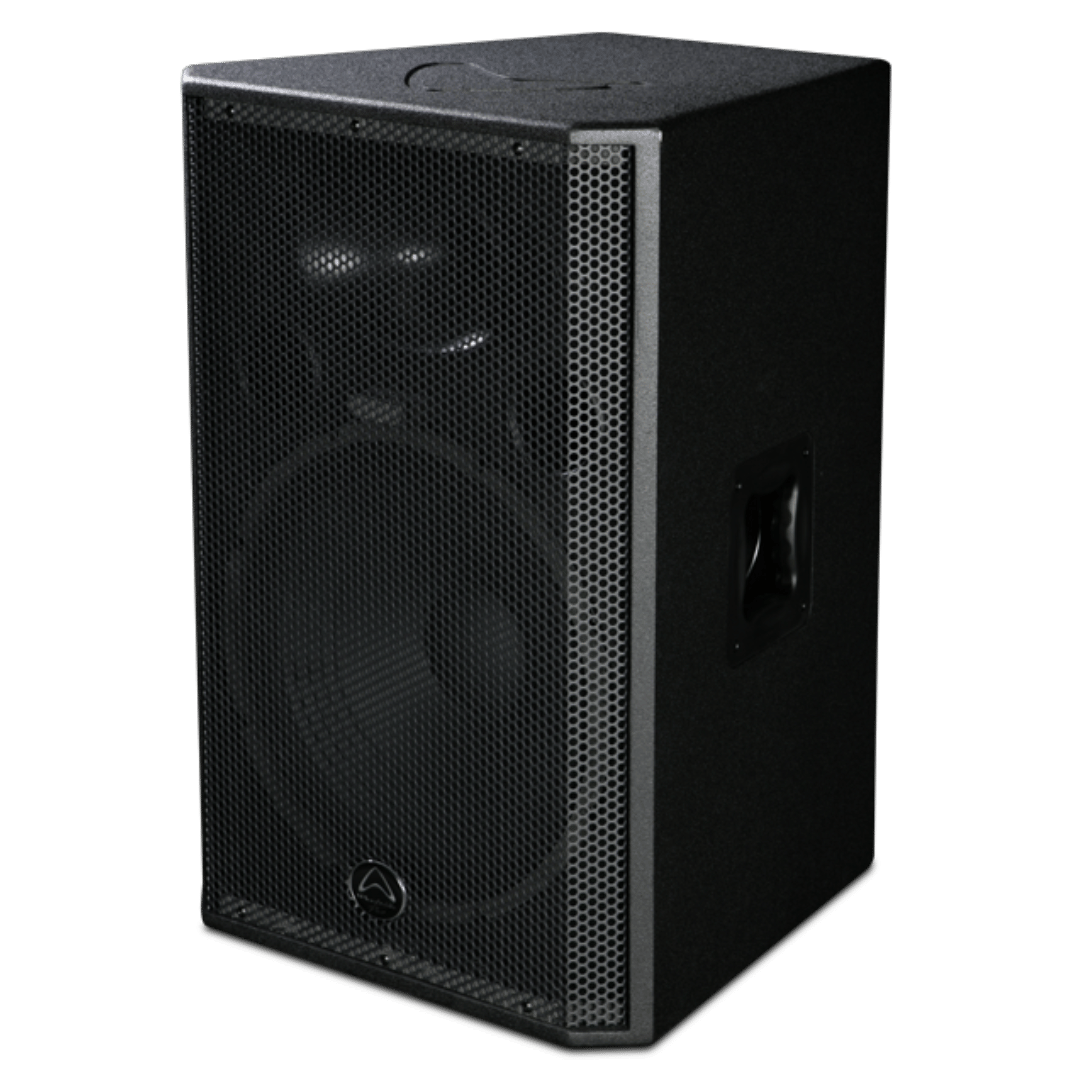

EVO-X15 is a 15″ two-way passive loudspeaker from our EVO-X Series — delivering increased low-frequency depth and high-output performance for live sound, DJ, and installation environments.
Equipped with a 15″ LF driver featuring a 2.5″ voice coil and a 1.75″ IRIS X compression driver, EVO-X15 offers a powerful full-range response with enhanced bass extension and clear, defined highs. With 350 W AES (1400 W peak) power handling and a maximum output of 130 dB SPL @ 1 m, it is ideal for larger venues or applications requiring greater low-end impact.
The elliptical 90° x 60° waveguide ensures wide, even coverage, while a robust crossover design maintains consistent phase and tonal balance across the frequency spectrum. A +3 dB HF boost switch provides quick on-site tonal adjustment when additional high-frequency presence is needed.
Constructed from durable MDF with a Tough-Tone paint finish and fitted with 4-way rubberised handles, EVO-X15 is built for reliability on the road. 4 pole speaker connectors and 1/4″ jack connectors provide flexible integration into professional PA systems.
EVO-X15 — powerful, versatile, and performance-ready.
| Specification | Value |
|---|---|
| Active or Passive | Passive |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 350 W |
| System Programme Power | 700 W |
| System Peak Power | 1400 W |
| Max SPL @ 1m | 130 dB |
| Freq Response (+/-3 dB) | 45 Hz – 20 kHz |
| Freq Range (-10 dB) | 40 Hz – 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 15″ |
| LF Voice Coil Size | 2.5″ |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 350 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector / 2 x 1/4″ Jacks |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Rhino Paint |
| Handles | 2 |
| Deployment | Pole |
| Pole Mount | Dual Angle (0° / 10°) 35 mm |
| Brackets Included | No |
| Rigging | No |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 M | 98 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2.2 kHz |
| Recommended HPF = BW 18 dB/OCT. | 40 Hz |
| Transformer (T) | No |
| Included Accessory | User Manual |
| Unpacked – Height (mm) | 675 |
| Unpacked – Width Front (mm) | 460 |
| Unpacked – Width Rear (mm) | 295 |
| Unpacked – Depth (mm) | 450 |
| Packed – Height (mm) | 750 |
| Packed – Width Front (mm) | 524 |
| Packed – Width Rear (mm) | 324 |
| Packed – Depth (mm) | 486 |
| Weight – Nett (kg) | 24.7 |
| Weight – Gross (kg) | 28.4 |
