Bluestream HDMI Audio embedder / de-embedder

Original price was: R4,330.Current price is: R3,110.

Check Stock Availability

SKU BSHD11AU Categories Studio, Studio & Recording Accessories

Our HD11AU is the perfect solution for either de-embedding or embedding audio within the HDMI signal path.

This solution allows you to break out up to 7.1ch audio signals. Connect the HD11AU between your source and display via HDMI, then select whether to embed or de-embed audio as required.

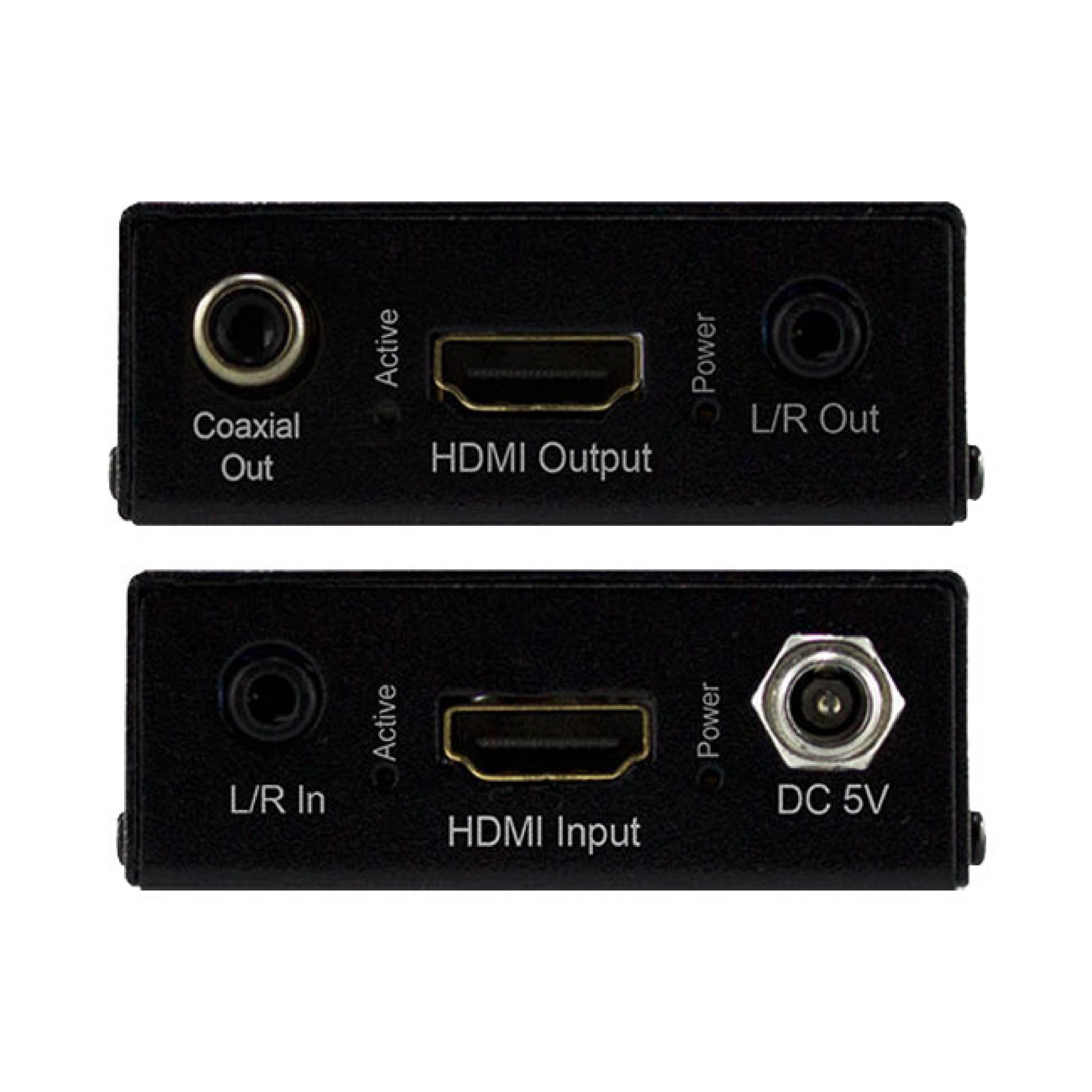

Audio Input Connectors: 1 x Analogue Left / Right audio (3.5mm stereo jack)
Audio Output Connectors: 1 x RCA (SPDIF) & 1 x Analogue Left / Right audio (3.5mm stereo jack)
Video Input Connectors: 1 x HDMI Type A
Video Output Connectors: 1 x HDMI Type A
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC, screw type connector
Mounting Kit Included

Can be configured to work as either an HDMI audio de-embedder or audio embedder
HDMI audio de-embedded to both analog L/R audio and coaxial digital outputs concurrently
Extract audio and embed analog L/R audio input onto the HDMI output
Extract audio with or without a connected display – acts as an end-sink
Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission*
Supports CEC bypass (Consumer Electronics Control)
Advanced EDID management allows for hand-shaking issues between HDMI equipment to be resolved when used as a repeater
HDCP 1.4 compliant
