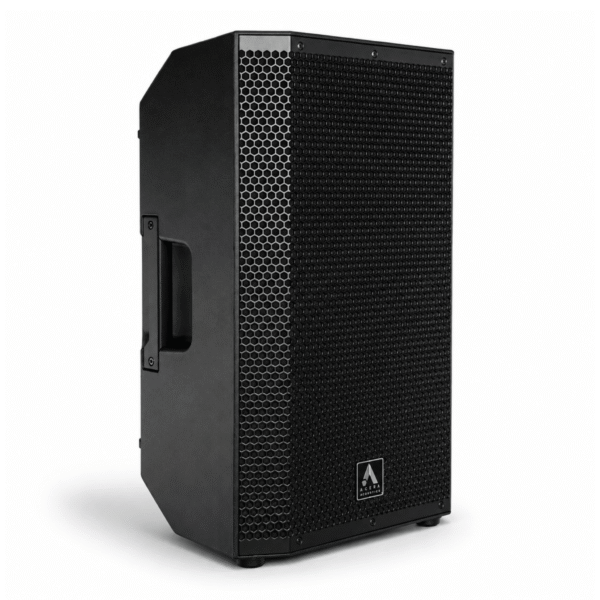

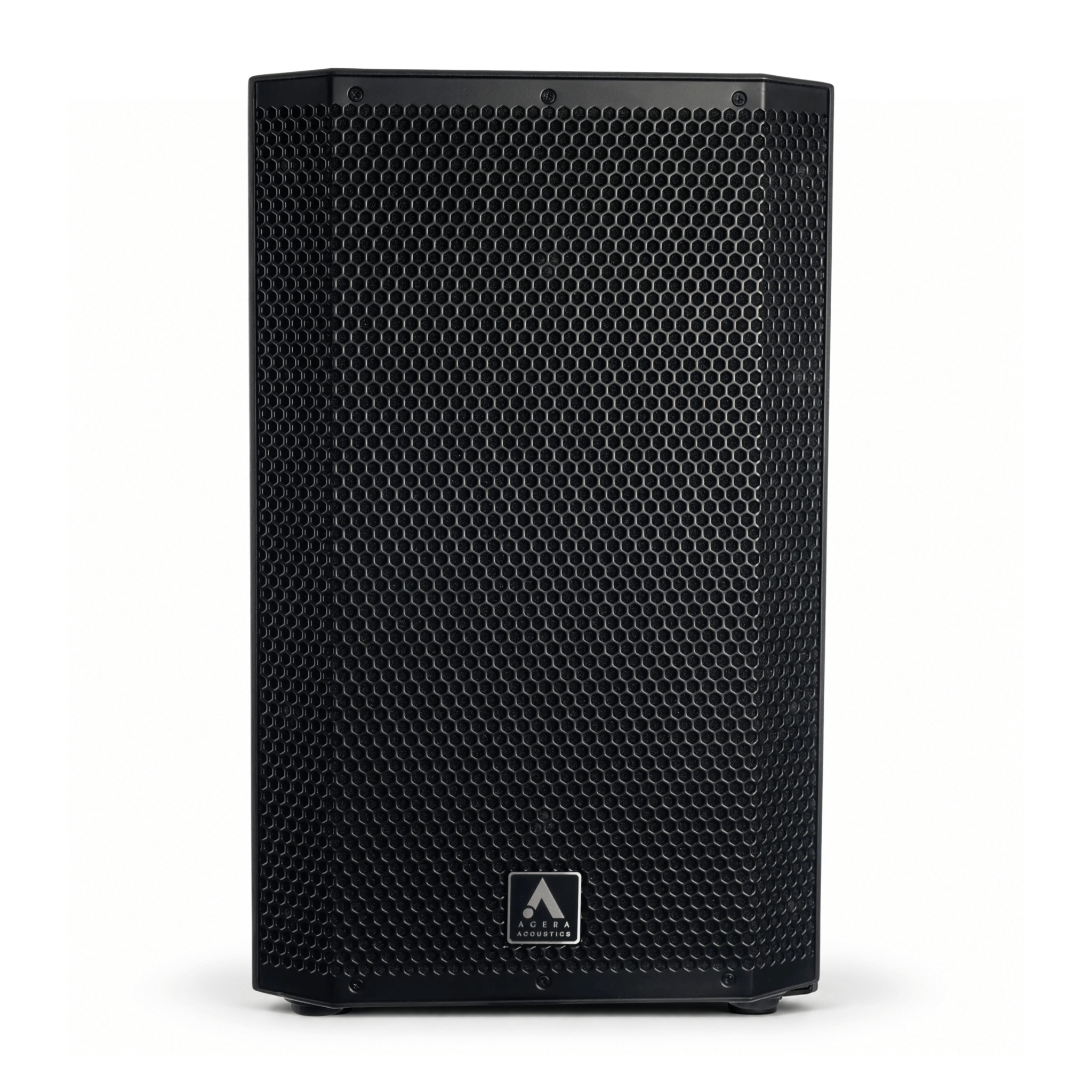

Agera Acoustics SWC-12AP Active Coaxial Speaker

The Agera Acoustics SWC-12AP Active Coaxial Speaker is a high-performance plastic moulded active cabinet designed for professional audio applications where durability, clarity, and powerful output are essential. Developed following the success of the SWC wooden cabinet range, the SWC-AP Series was engineered to deliver exceptional performance in a compact and rugged enclosure.

Powered by a 1400W RMS amplifier, the SWC-12AP combines high output capability with a compact cabinet design, delivering impressive sound pressure levels and crystal-clear audio reproduction. Its coaxial speaker design ensures balanced sound dispersion and accurate phase alignment for both front-of-house and monitor applications.

High-Output Full-Range Performance

The SWC-12AP is a 2-way active coaxial speaker, delivering a frequency response of 55Hz – 20kHz. With a maximum SPL of 128dB (Peak), it provides powerful and detailed sound reproduction suitable for demanding professional environments.

The high-powered amplification platform ensures excellent dynamic headroom and reliable performance for live sound, DJ applications, and installed audio systems.

Precision Coaxial Driver Design

The SWC-12AP features a high-efficiency coaxial driver configuration consisting of:

• 1 × 12” low-frequency driver
• 1 × 1” throat core compression driver

The coaxial design enables more linear sound reproduction while also providing symmetrical coverage when used in floor monitor applications.

With a dispersion pattern of 80° × 80°, the speaker delivers consistent and even sound coverage across the listening area.

The system operates with a crossover frequency of 2.2 kHz, ensuring a smooth transition between low and high frequencies.

Integrated DSP & Control

The SWC-12AP includes built-in DSP processing with multiple presets designed to suit different applications:

• 5 DSP modes: Music, Speech, DJ, Monitor, Live

Additional processing features include:

• 3-band EQ
• Low-cut filter
• Delay control
• Volume adjustment

These tools allow users to optimise the system quickly for different venues and audio requirements.

Connectivity & Wireless Streaming

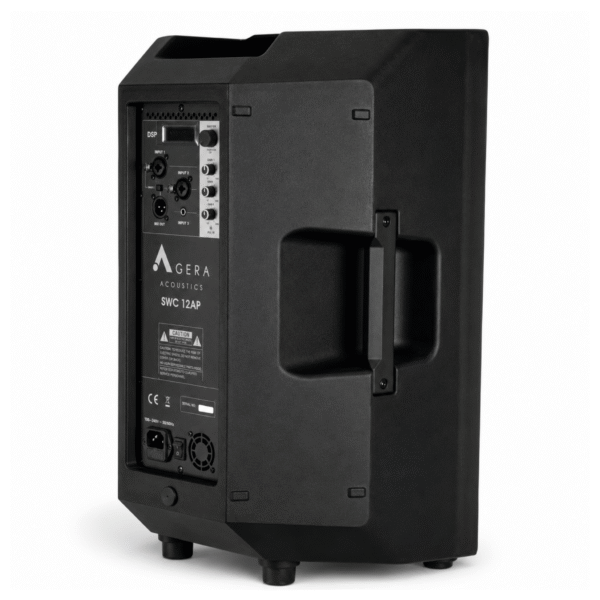

The SWC-12AP provides versatile connectivity options, including:

• 2 × Multi-combo inputs (XLR + Jack)
• 1 × 3.5mm auxiliary input
• XLR link output

The system also includes built-in Bluetooth streaming for convenient wireless audio playback and plug-and-play operation.

Flexible Installation & Mounting

Designed for both portable and fixed installation use, the SWC-12AP includes:

• 35mm pole mount with 0° and 7.5° tilt options
• 5 × M10 rigging points for flown installations

This flexibility makes the speaker suitable for a variety of deployment configurations.

Compact & Durable Design

The rugged plastic moulded enclosure is designed to withstand demanding professional use while maintaining portability and ease of handling.

The cabinet measures 36 x 57 x 30m and weighs approximately 15 kg, offering a strong balance between performance and mobility.

Ideal Applications

The SWC-12AP is perfectly suited for:

• Live Bands and Performers
• Mobile DJs
• Clubs and Entertainment Venues
• Churches and Houses of Worship
• Stage Monitoring Applications
